LEGACY SUBSCRIBER

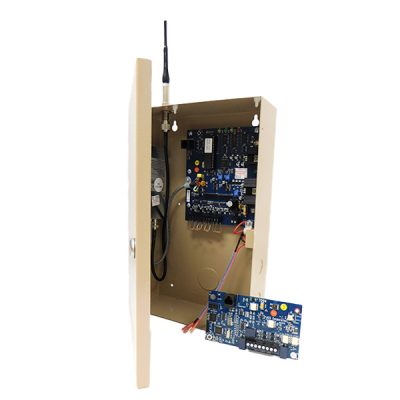

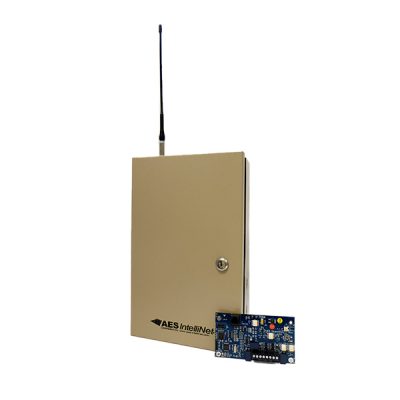

7058E-P Burglary Subscriber

8 zone supervised burglary alarm communicator with IntelliPro full data module.

The 7058E-P offers all the features of the 7058E plus the 7094 IntelliPro full data module. Comes in a durable metal case. Tested to UL 2017 – Safety for General Purpose Signaling Devices and Systems.

Benefits

Economical burglary Subscriber for transmission of full alarm zone and event codes.

Tested to UL 2017 – Safety for General Purpose Signaling Devices and Systems

Technical Specifications

Dimensions

13.25”H x 8.5”W x 4.3”D
(34 cm H x 21.5 cm W x 11 cm D)

WEIGHT

  1. 12.05 lbs (5.47 kilograms),
    with 12V 10Ah battery
  2. 5 lbs pounds (2.27 kilograms),
    excludes battery

Radio Frequency

Standard Frequency Range: 450-470MHz
Contact AES for other UHF and VHF frequencies

Antenna

2.5 dB Tamper resistant antenna included

Power Input

16.5V AC Class 2 Transformer
Transformer not included

Backup Battery

10 Ah with 7094; 5 Ah without 7094, UL recognized lead acid gel cell battery
Size based on Subscriber configuration

Current Consumption

Backup Battery Power

  1. Standby = .136A
  2. Transmit = .750A
  3. Optional 7094 =.145A, Standby and Alarm

Alarm Signal Inputs

8 Individually programmable
zones: NO/NC/Supervised EOL/ Fire EOL/ Voltage from panel/ Trouble and Restore

Power Output

2 or 5 Watts
Contact AES for other options

OPERATING TEMPERATURE

32 to 122°F (0° to 50°C)

STORAGE TEMPERATURE

14 to 140°F (–10° to 60° C)

RELATIVE HUMIDITY

0 to 85% RHC, Non-condensing

ANTENNA CUT/ COMMUNICATION TROUBLE OUTPUT

12V Open collector output at J4, ground on activation; 200mA max load

Programming Interface

Handheld programmer

Ports

Serial communication port

RESET BUTTON

Located on main circuit board

ENCLOSURE MATERIAL

Metal with paint finish

ENCLOSURE COLOR

Beige

Visual Indicators

LED indicators inside enclosure (ALM, Trouble, Tx, Rx, WA)

Features
  1.  Direct reporting to AES receiver across AES-IntelliNet mesh radio network
  2. On board status LED’s for easy setup
  3. 8 On board programmable zone inputs
  4. Rugged metal housing ideal for any commercial security application
