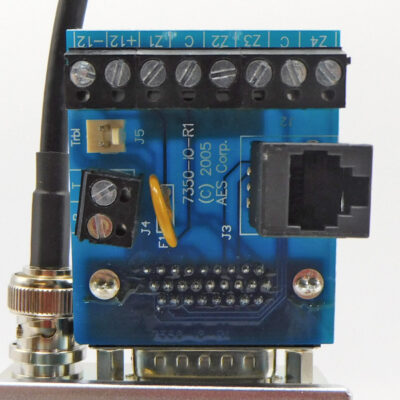

7350 Integrated Transceiver Kit
PCB and radio integrated into a single component case for installation into alarm panel and other non-fire monitoring applications.
The 7350 Integrated Transceiver is primarily an IntelliNet network PCB and radio integrated into a single component case. It is designed to be housed as an add-in communications component to a customer’s alarm panel.
Benefits
Eliminates the need for a separate enclosure and power supply due to installing into an existing alarm panel.
Dimensions 2.25"W x 1.25"D x 4.75"L
Weight 8.9 oz
Radio Frequency UHF – 450-480 MHz VHF – 150-174 MHz
Antenna Included 2.5 db tamper resistant antenna mounts on enclosure Multiple remote antenna options available
Power Output 2 Watt Factory set
Power Input 12 VDC Nominal, 150mA Standby, 1A Transmit (2W)
Backup Battery N/A
Zone Inputs
4 individually programmable
Zones: NO/NC/EOL, trouble restore
Telephone line cut monitor
Reset Button There is a reset button on the bottom of the transceiver.
System Trouble Output Relay N/A
Operating Temperature 32° – 122°F
Storage Temperature 14°–140°F
Relative Humidity 0 to 85% RHC, Non Condensing
Ports N/A
Annunciator N/A
Compatible Receivers This product communicates with both our current Multinet receivers 7705i and 7705ii
Programming Interface This product is programmed with the 7041E
Enclosure Material N/A
Enclosure color N/A
Visual Indicators
This unit has built-in LEDs There are 4 LED’s on the cover of the 7350.
The function of each is described below.
ALM – (Red) Status / troubleshooting indicator,
See “…Blink Patterns” below
WA – (Yellow) Steady On = Waiting for
acknowledgment of last transmission;
– Steady Blinking = Not on Network; Off = Normal
RX – (Green) Indicates radio receive (includes any
radio activity on this frequency strong enough to
break squelch)
TX – (Yellow) indicates radio transmit
- 4 zone inputs
- 4 LED lights
