7707P-88-M IntelliNet 2.0 Fire Subscriber

8-Zone supervised fire alarm communicator with integrated LCD display, LED indicators, and annunciator.

The 7707P-88-M IntelliNet 2.0 Fire Subscriber includes 8-zones with an integrated onboard local annunciator and the ability to communicate over RF or IP. Comes in a durable, red enclosure with Power & Trouble LED’s, backlit LCD display and Menu/Silence button. UL & Canadian ULC Listed and NFPA Code Compliant.

No DACT on Honeywell panel? No problem! Compatible with Honeywell’s NOTIFIER ONYX® and INSPIRE™ Series and Gamewell E3 Series® and S3 Series panels. Follow this link for more details.

Also available

  1. 4×4 Zone (4 reversing polarity, 4 supervised); Model 7707P-44-M
Place an Order
Request Pricing
How-to Videos

Benefits

The IntelliNet 2.0 Fire Subscriber transmits consolidated alarm, trouble, and supervisory signals. It’s easy to program with your laptop, phone or tablet and provides instant subscriber status with front panel LED’s and backlit LCD display.

Technical Specifications

Dimensions

13″H x 8.5″W x 4.5″D
(33cm H x 21.5cm W x 11.4cm D)

WEIGHT

  1. 15.85 lbs (7.2 kilograms) with 12 Ah battery
  2. 7 lbs (3.2 kilograms), excluding battery

Radio Frequency

Standard Frequency Range: 450-470 MHz
Contact AES for other UHF and VHF frequencies

Antenna

2.5 dB tamper resistant antenna included

Power Input

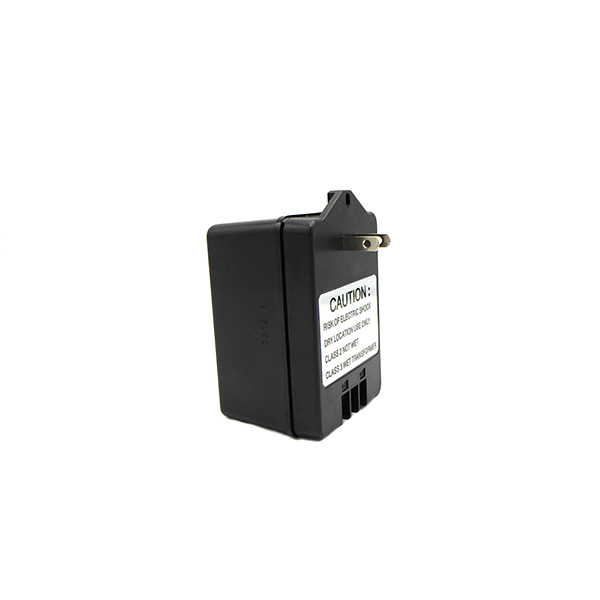

  1. 16.5V AC Class 2 Transformer
    Transformer not included
  2. 24V DC External Regulated Power Supply
  3. 24V DC Regulated Power Supply from FACP AUX Power

Backup Battery

12 Ah with 7794A; 6 Ah without, UL recognized lead acid gel cell battery
Size based on Subscriber configuration

CURRENT CONSUMPTION

Backup Battery Power

  1. Standby = .190A
  2. Transmit = .752A
  3. Optional 7794A = .165A, Standby and Alarm

ALARM SIGNAL INPUT ZONES

  1. 8 Individually programmable E.O.L. type zone inputs
  2. 4 x4 Option with 4 reverse polarity input and 4 individually programmable E.O.L. type zone inputs
  3. Optional 7794A for full data via Contact ID, Pulse, Modem IIe, and Modem IIIa2

UL Listings

  1. UL 864 Standard for Control Units and Accessories for Fire Alarm Systems, Edition 10
  2. ULC S559-04 Equipment for Fire Signal Receiving Centers and Systems, Edition 1

Trouble Output - ACK Delay/ Antenna Cut

Form C relay, fail secure, rated 24V DC 1A resistive, unsupervised

RESET BUTTON

Located on main circuit board

OPERATING TEMPERATURE

32 to 120°F (0 to 49°C)

STORAGE TEMPERATURE

14 to 140°F (-10 to 60°C)

RELATIVE HUMIDITY

0 to 93%, Non-condensing

Ports

  1. (1) Ethernet
  2. (2) USBs

ANNUNCIATOR

Integrated Local Annunciator

PROGRAMMING INTERFACE

Web browser capable device accessible via smartphone, tablet, laptop, or PC

Power Output

2 or 5 Watts
Contact AES for other options

ENCLOSURE MATERIAL

Steel with paint finish

ENCLOSURE COLOR

Red

VISUAL INDICATORS

  1. Front panel LCD (2 x 20 alphanumeric character backlit display)
  2. Power and Trouble LEDs (ALM, Trouble, Tx, Rx, WA)
  3. Menu/ Silence Button
Features
  1. Meets NFPA 72 specifications and UL 864 standards
  2. 8-Zone inputs
  3. Hardware Supervisory Module (satisfies full data primary communication requirements)
  4. Dual Communication/Multiple communication technology (reporting over RF and IP)
  5. Integrated Local Annunciator
  6. Secure Dealer Codes to safeguard critical data
  7. Front panel Power and Trouble LEDs and Menu/Silence button
  8. Improved functionality with an adaptive graphical user interface (GUI) for programming via smartphones, tablet and PCs
  9. 2.5 dB Rubber Duck Antenna
  10. Offers flexible power and configuration options

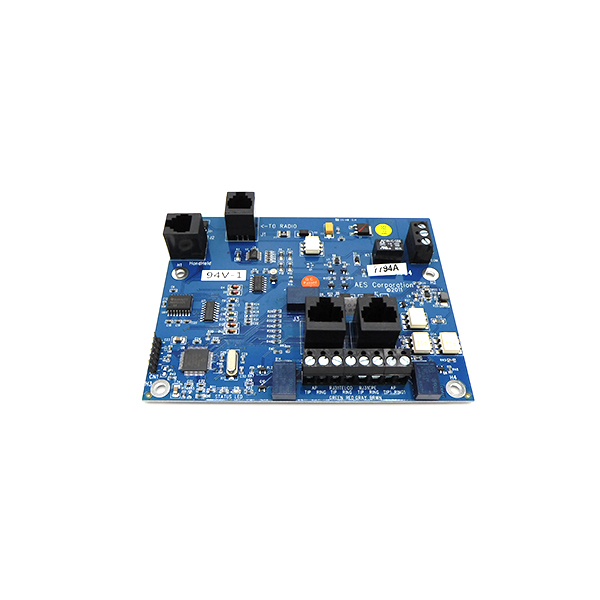

7794A | 2.0 IntelliPro Accessory Board
77-WiFi | Adaptor

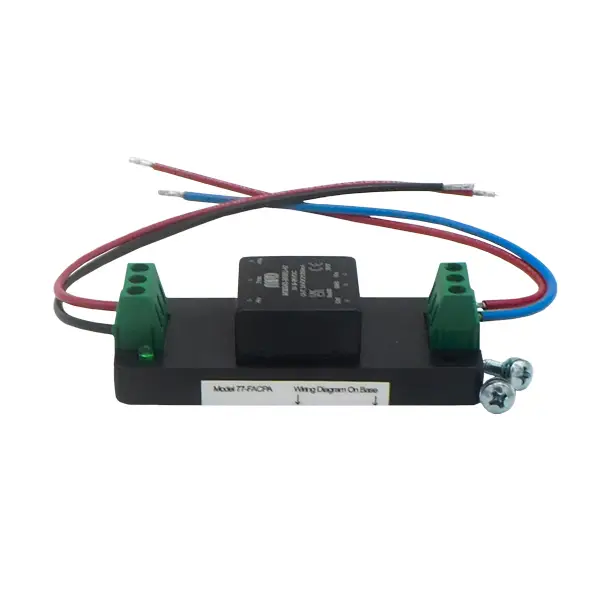

77-FACPA | Fire Alarm Control Panel Adaptor

7707P-88-M Fire Subscriber How-to Videos

7707P-88-M Fire Subscriber Videos

6 Videos

Software Update

7707P-88-M IntelliNet 2.0 Fire Subscriber

If currently running software v7.2.02 or OLDER please contact tech support for correct files.

Follow this link to request a pre-loaded USB thumb drive.

If currently running software v7.2.03 or NEWER please download the latest software version below. You can update the Subscriber via thumb drive OR laptop/ Ethernet.

v7.2.12 | Release Date: Oct. 2024

Download v7.2.12
