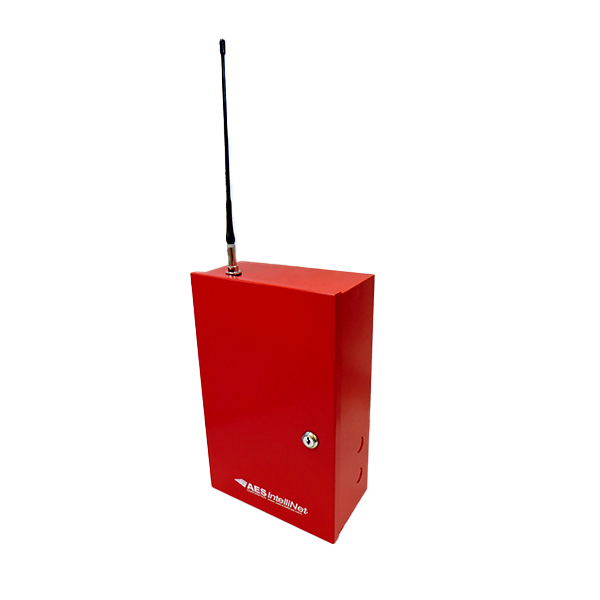

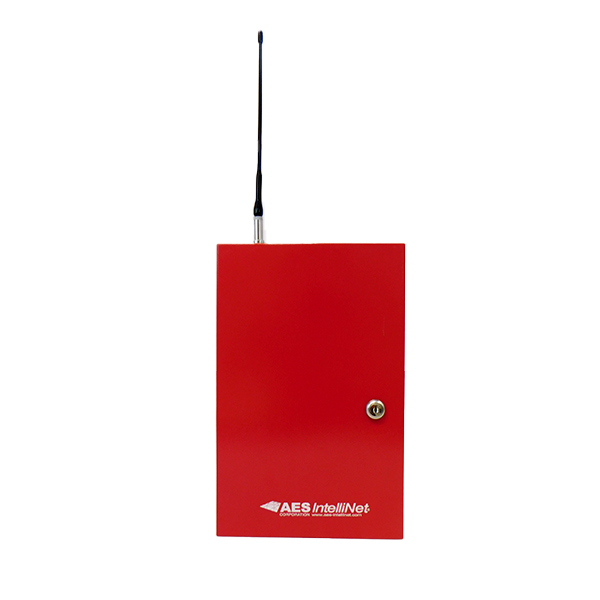

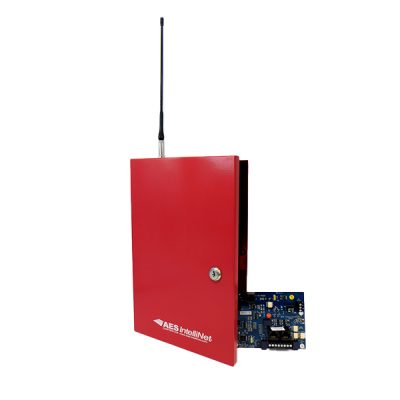

7788F-ULP Fire Subscriber

8-Zone supervised fire alarm communicator with IntelliPro full data module.

The 7788F-ULP offers all the features of the 7788F plus the 7794 IntelliPro full data module. Comes in a durable red metal enclosure. UL & ULC Listed and NFPA Code Compliant.

Also available

  1. 4Ɨ4 Zone (4 reversing Polarity, 4 supervised); Model 7744F-ULP
Ā
  1. Canadian ULC listed Model # 7788F-C-ULP

Benefits

Economical Fire Subscriber for transmission of full alarm zone and event codes.

Technical Specifications

Dimensions

13.25″ H x 8.5″ W x 4.3″ D

WEIGHT

5.8 lbs., excludes battery

Radio Frequency

Standard Frequency Range: 450-470 MHz
Contact AES for other UHF and VHF frequencies

Antenna

2.5 db tamper resistant antenna mounts on enclosure

Antenna Supervision

N/A

Power Output

2 Watts and 5 Watts

Power Input

16.5VAC, 40VA transformer (not included) (AES 1640, ELK TRG1640, MG Electronics MGT1640 – UL Listed for use)

RECHARGE CAPABILITY

Will charge 12V battery up to 7.5 – 12 AH

Backup Battery

Requires 12VDC 7.5 AH battery for UL 864. F1 Connector

ALARM SIGNAL INPUTS

8 individually programmable zones

ANTENNA CUT/COMMUNICATION TROUBLE OUTPUT

Form C relay; fail secure; rated for 24 VDC 1A resistive

RESET BUTTON

Located on main circuit board

VISUAL INDICATORS

LED indicators inside enclosure (ALM, Trouble, Tx, Rx, WA)

PROGRAMMING INTERFACE

Handheld programmer

OPERATING TEMPERATURE

32° to 122°F

STORAGE TEMPERATURE

14° to 140°F

RELATIVE HUMIDITY

0 to 85% RHC, Non-Condensing

Ports

Serial communication port

ANNUNCIATOR

Optional 7740 local annunciator

COMPATIBLE RECEIVERS

7705i and 7705ii AES-MultiNet Receiver

CURRENT CONSUMPTION

Primary Power

Standby Current = .186A
Transmit Current = .914A
IntelliPro (7794) = .165A

SMOKE DETECTOR COMPATIBILITY

N/A

NAC OUTPUT

N/A

NAC PATTERNS

N/A

ENCLOSURE MATERIAL

Steel

ENCLOSURE COLOR

Red

Features

  1. Meets NFPA 72 specifications and UL 864 standards
  2. 8-zone inputs
  3. On board status LEDs
  4. Programming via AES handheld programmer
  5. Includes a 7794 AES IntelliPro full data module
  6. Includes a 2.5dB rubber duck antenna
  7. Rugged metal housing ideal for any commercial fire alarm application
