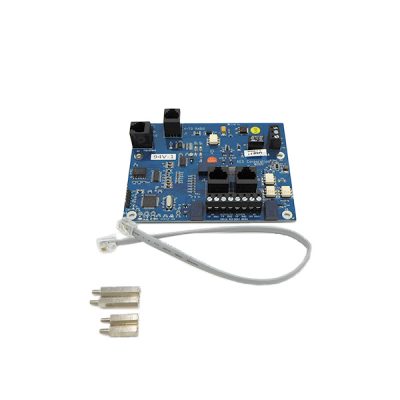

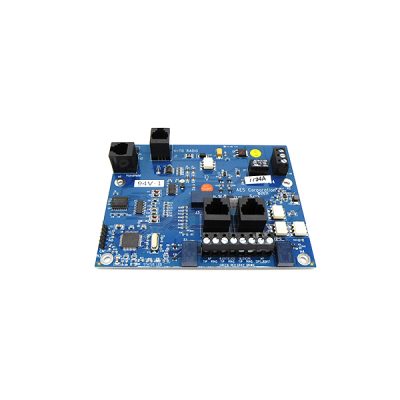

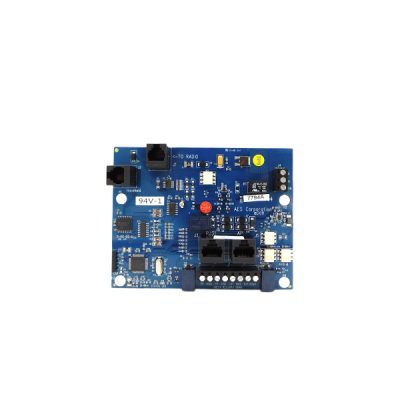

7794A

2.0 IntelliPro Accessory Board for 2.0 Fire Subscribers

Fire full data module add-on accessory board with firmware for new IntelliNet 2.0 Fire units only. Not for use with Legacy Fire Subscribers.

Also available as a 10 pack:
Part #:7794A-10 Pack

Technical Specifications
SUPPORTED FORMATS

Contact ID, Pulse 3+1, Pulse 4+1, Pulse 4+2, Modem II, Modem III

DIMENSIONS

2.8 in x 5.0 in
(7.1 cm x 12.7 cm)

WEIGHT

0.2 lb
(0.09 kg)

I/O CONNECTIONS
  1. AES Subscriber with power
  2. POTS incoming phone line
  3. Phone output from alarm panel
  4. Trouble output (form C relay)
POWER REQUIREMENTS

12 VDC nominal, primary and backup power provided by the AES RF Transceiver Unit

09-7794A-HDWR

Stand-off Kit for 7794A, Male to Female
