7177H-88-ULP IntelliNet 2.0 Hybrid Subscriber

8-Zone supervised fire alarm communicator with IP Link functionality.

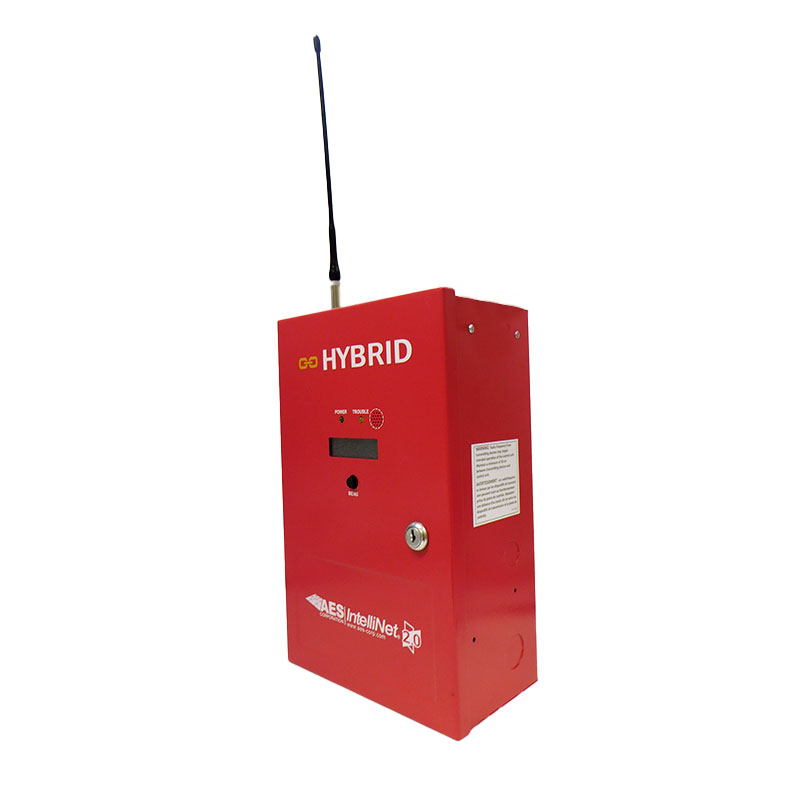

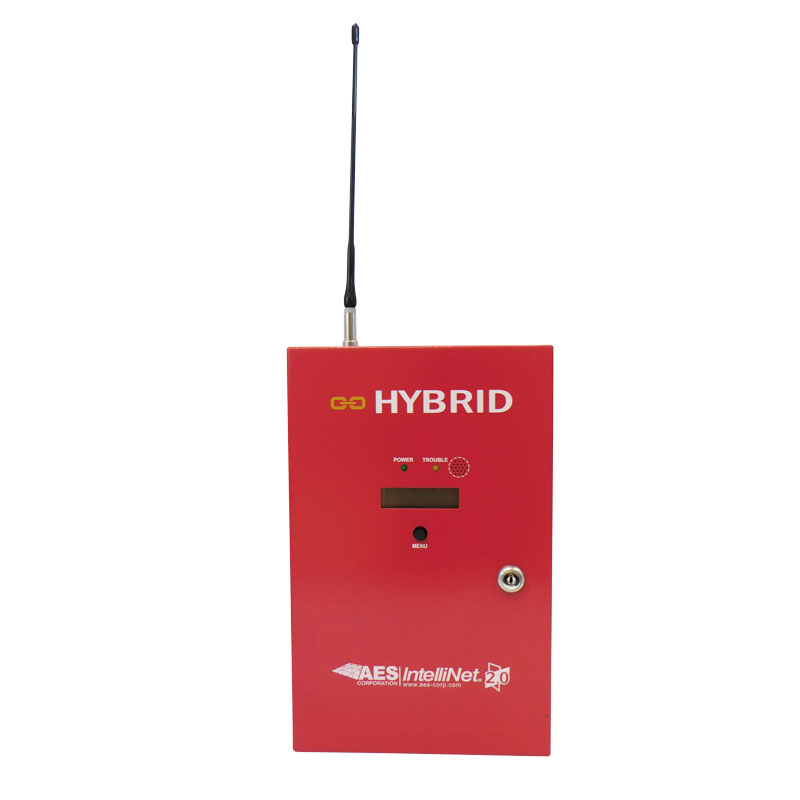

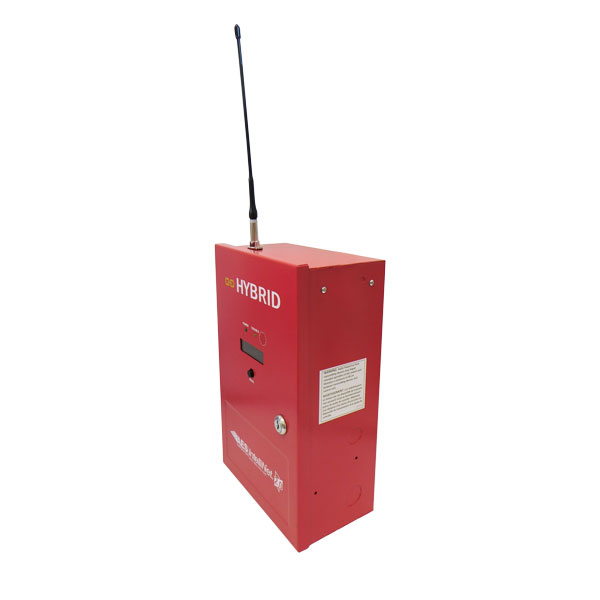

The 7177H-88-ULP Hybrid 2.0 Fire Subscriber includes 8-zones, IntelliPro full data module and IP Link capabilities. Provides the capability to send an alarm from the customers premises to the Central Monitoring Station (CMS) via RF and/or IP. Can transmit peer signals via IP as well. UL & Canadian ULC listed and NFPA Code Compliant.

Also available

  1. 4Ɨ4 Zone (4 Reversing Polarity, 4 supervised); Model 7177H-44-ULP

Benefits

Hybrid Fire Subscriber offers dual functionality combining full data module with IP link capabilities making for fast and easy setup. Helps improve network health and makes it easy to expand and start a new network.

UL 864 Standard for Control Units & Accessories for Fire Alarm Systems, Edition 10 | CAN/ULC S559 Equipment for Fire Signal Receiving Centers and Systems, Edition 2

Technical Specifications

Dimensions

13ā€³H x 8.5ā€³W x 4.5ā€³D
(33cm H x 21.5cm W x 11.4cm D)

WEIGHT

  1. 15.85 lbs (7.2 kilograms) with 12 Ah battery
  2. 7 lbs (3.2 kilograms), excluding battery

Radio Frequency

Standard Frequency Range: 450-470 MHz
Contact AES for other UHF and VHF frequencies

Antenna

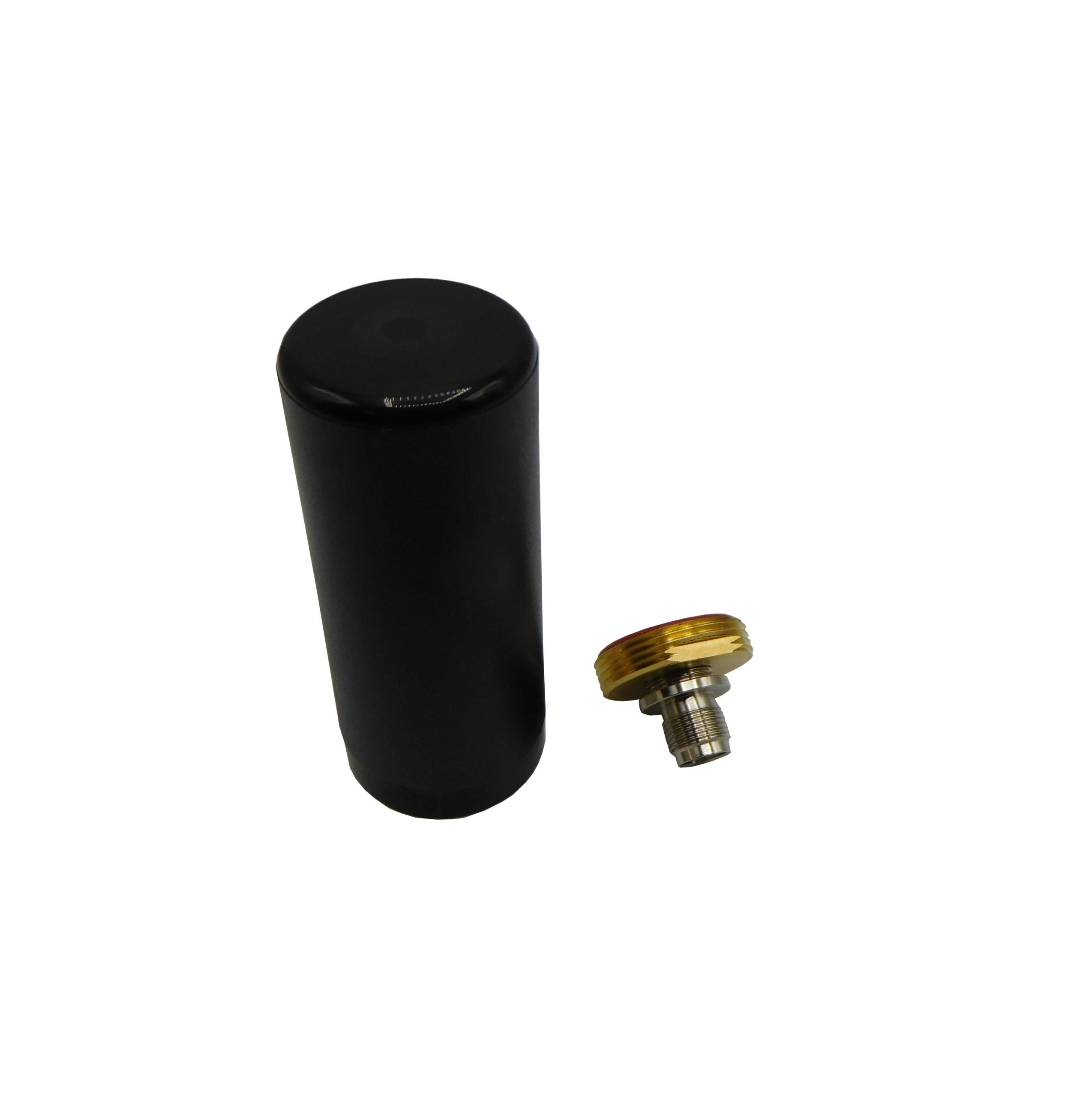

2.5 dB tamper resistant antenna included

Antenna Supervision

Antenna is connected to dedicated Antenna Supervision Module (ASM) for constant antenna supervision

Power Input

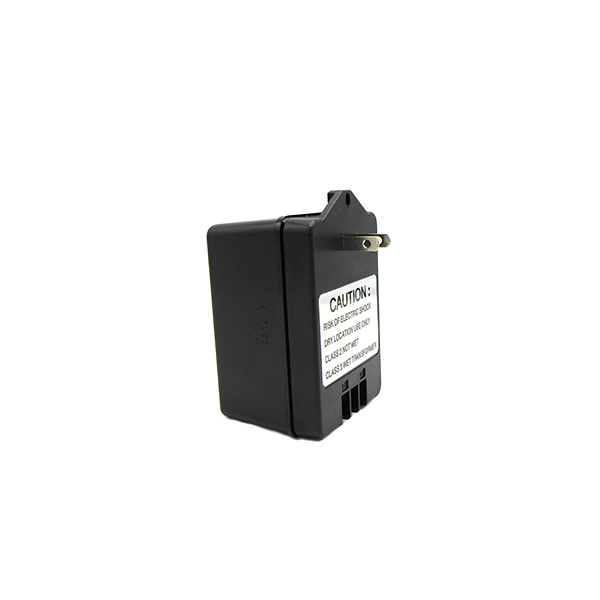

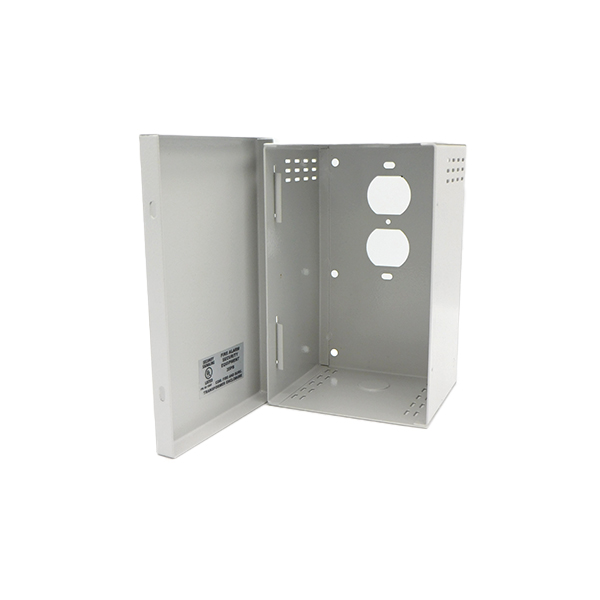

  1. 16.5V AC Class 2 Transformer
    Transformer not included
  2. 24V DC External Regulated Power Supply

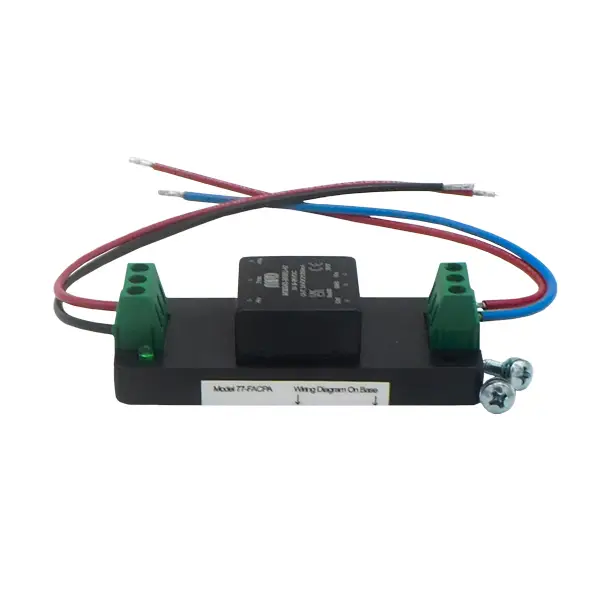

  3. 24V DC Regulated Power Supply from FACP AUX Power

Backup Battery

12 Ah, UL recognized lead acid gel cell battery
Size based on Subscriber configuration

CURRENT CONSUMPTION

Backup Battery Power

  1. Standby = .355A
  2. Transmit = .786A

ALARM SIGNAL INPUT Zones

  1. 8 Isolated dry contact zones
  2. 4 x4 Option with isolated dry contact zone and 4 isolated reverse polarity zones; 1 zone is reserved for Tamper Switch
  3. 7794A Full data module included for Contact ID and Pulse

UL Listings

  1. UL 864 Standard for Control Units and Accessories for Fire Alarm Systems, Edition 10
  2. CAN/ ULC S559 Equipment for Fire Signal Receiving Centers and Systems, Edition 2

Trouble Output - ACK Delay/ Antenna Cut

Form C relay, fail secure, rated 24V DC 1A resistive, unsupervised

RESET BUTTON

Located on main circuit board

OPERATING TEMPERATURE

32 to 120Ā°F (0 to 49Ā°C)

STORAGE TEMPERATURE

14 to 140Ā°F (-10 to 60Ā°C)

RELATIVE HUMIDITY

0 to 93%, Non-condensing

Ports

  1. (1) Ethernet
  2. (2) USBs

ANNUNCIATOR

Integrated Local Annunciator

PROGRAMMING INTERFACE

Web browser capable device accessible via smartphone, tablet, laptop, or PC

Power Output

2 or 5 Watts
Contact AES for other options

ENCLOSURE MATERIAL

Metal with paint finish

ENCLOSURE COLOR

Red

VISUAL INDICATORS

  1. Front panel LCD (2 x 20 alphanumeric character backlit display)
  2. Power and Trouble LEDs (ALM, Trouble, Tx, Rx, WA)
  3. Menu/ Silence Button
Features
  1. Meets NFPA 72 specifications and UL 864 standards
  2. 8 zone inputs
  3. Hardware Supervisory Module (satisfies full data primary communication requirements)
  4. Includes AES IntelliPro Full Data Module
  5. Dual Communication/Multiple communication technology (reporting over RF and IP)
  6. Integrated Local Annunciator
  7. Secure Dealer Codes to safeguard critical data
  8. Front panel Power and Trouble LEDs and Menu/Silence button
  9. Improved functionality with an adaptive graphical user interface (GUI) for programming via smartphones, tablet and PCs
  10. 2.5 dB rubber duck antenna
  11. Offers flexible power and configuration options
  12. Provides dual functionality ā€“ subscriber and IP Link
  13. Integrated Tamper Switch connected to one of the available dry contact zones

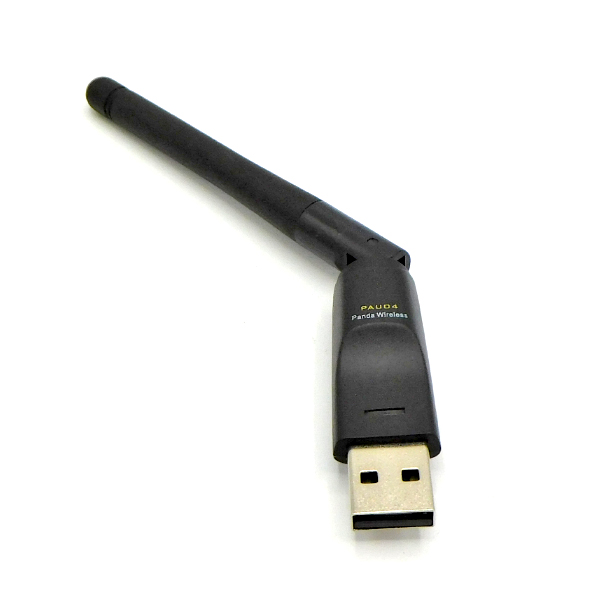

  14. Wifi internet connectivity
  15. Antenna supervision module (ASM)
  16. Ground fault isolation transformer

7177H Hybrid Subscriber How-to Video Series

7177H Hybrid Subscriber How-to Videos

1 Videos

Software Update

Updating AES 2.0 with a Thumb Drive

(thumb drive is only used with UBIFS full download)

Updating AES 2.0 with a Laptop and Ethernet Connection

Hybrid 7177H

v8.2.10

Release Date: January 2024

If currently running software v8.2.02 or older please contact tech support for correct files.Ā

Follow this link to request a pre-loaded USB thumb drive.
