When customer internet is unavailable, unreliable or difficult to access, the 7177-RT Router Kit gives dealers a fast, turnkey way to add cellular connectivity to the 7177H Hybrid Subscriber. The rugged enclosure mounts directly to the Hybrid and draws power from it, helping simplify installation. An included multi-carrier SIM supports Verizon®, AT&T® and T-Mobile® networks and helps maintain connectivity by switching carriers when needed.
The 7177-RT Router Kit is designed for AES dealers and integrators deploying Hybrid Subscribers at locations where an internet connection is unavailable, unreliable or controlled by another party. It reduces ISP coordination and provides a dedicated cellular option for connecting the Hybrid.
Add cellular connectivity without depending on the customer’s network or internet provider.

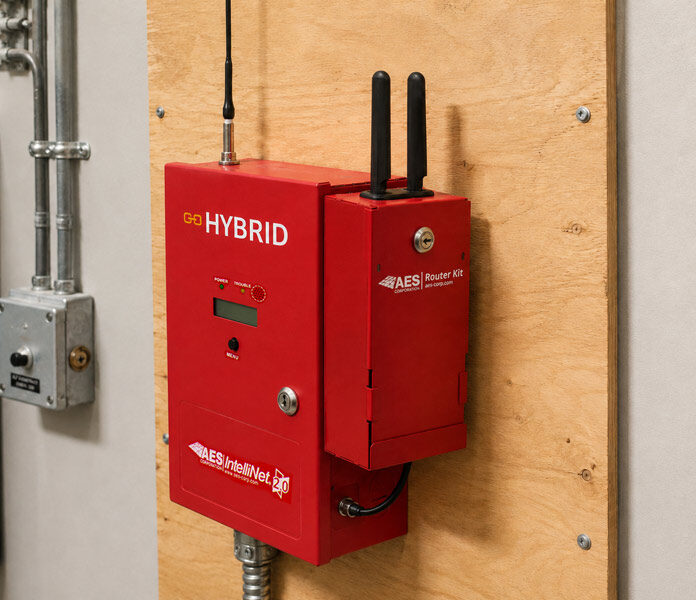

Mount the enclosure directly to the 7177H Hybrid Subscriber using integrated magnets.
Power the router from the Hybrid using the included GPIO cable, subject to documented battery requirements.
Use the included multi-carrier SIM with Verizon®, AT&T® and T-Mobile® network support.

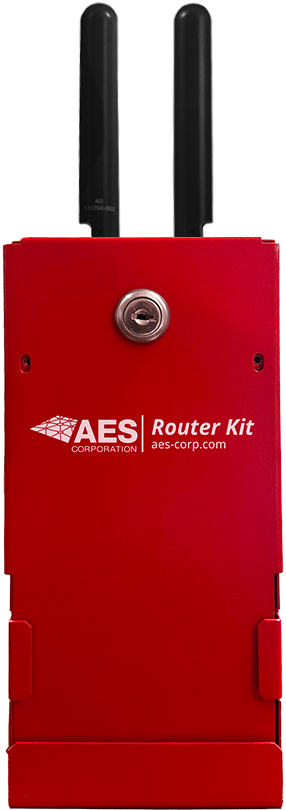

The 7177-RT Router Kit combines an Ericsson® Cradlepoint® S450 router, two LTE antennas and a multi-carrier SIM in a rugged, lockable metal enclosure. It also includes three years of NetCloud™ Manager to support streamlined installation, device management and troubleshooting.
The 7177-RT is also compatible with the 7707P 2.0 Fire Subscriber, although it is not designed to mount directly to the side of that enclosure.
See how the 7177-RT Router Kit can simplify cellular deployment for your next 7177H Hybrid Subscriber installation.
9” H x 4.35” W x 2.90” D
(23cm H x 11cm W x 7.36cm D)
Approx 3 lbs (1.36 kg) with Ericsson Cradlepoint router)
Metal
Red
3.9” H x 4.1” W x 1.2” D
7.8 oz (221 g)
(2) – LTE Antennas
-4°F to 140°F (-20°C to 60°C)
-4°F to 158°F (-20°C to 70°C)
0 to 95% operating
Multi-Carrier SIM card (Verizon, AT&T, T-Mobile)
