Coming soon!

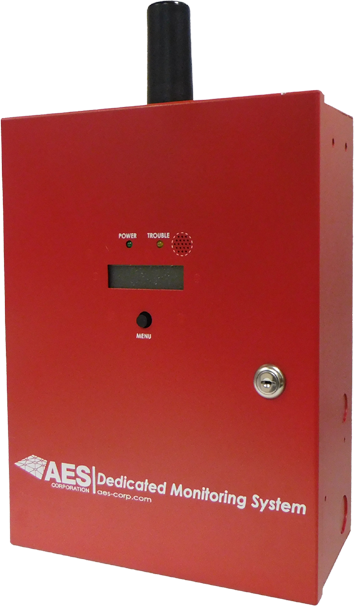

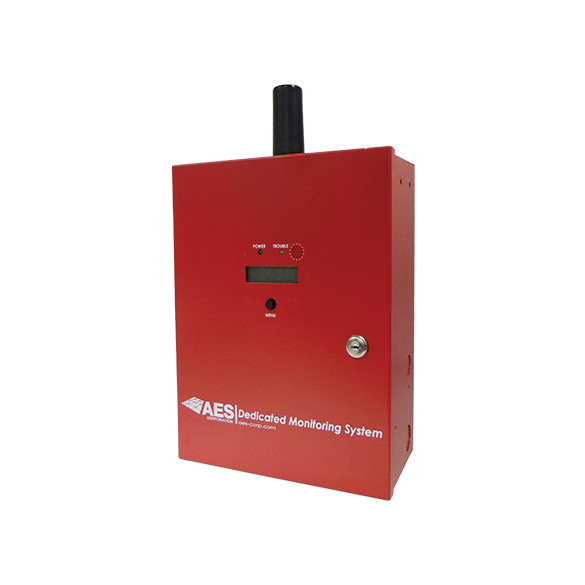

7704-DMS Dedicated Monitoring System

Built for AES Networks
Perfect for dedicated functions (e.g., waterflow, tamper), or as an integrated 2.0 conventional panel for small installations.
Sign Up For Product Notifications

The AES 7704-DMS Dedicated Monitoring System is a fully integrated monitoring system that combines panel functionality with the connectivity of a 2.0 AES Fire Subscriber. With 6 zones and 1 NAC circuit, this single-box solution enables AES providers to easily monitor and send alarm signals over a new or existing networks.

Key Benefits

  1. Faster installation saving you time and money
  2. Compatible with many manufacturers’ devices
  3. User-friendly programming
Technical Specifications

DIMENSIONS
13”H x 10”W x 4.5”D
(33 cm H x 25.2 W x 11.4 cm D)
WEIGHT
Approx. 8.1 lbs (3.7 kg) without battery
Approx. 16.3 lbs (7.4 kg) with 12 aH battery
RADIO FREQUENCY
Standard frequency range: 450-470 MHz
Contact AES for other UHF and VHF frequencies
ANTENNA
3.3 dB Phantom Antenna with NMO Mount
POWER INPUT
16.5V AC 50 VA Transformer
BACKUP BATTERY
12 Ah battery
CURRENT CONSUMPTION
See AES Battery Calculator
ALARM SIGNAL INPUTS
  1. 6 Programmable Initiating Device Circuits Input Zones
  2. Type B input (2-wire)

CERTIFICATIONS

  1. Intertek (ETL) Listed to UL 864 Standards
  2. CALFire and FDNY Listed
RESET BUTTON
Silence/ Reset Button located on main circuit board
OPERATING TEMPERATURE
32° to 122° F
STORAGE TEMPERATURE
 14° to 140° F
RELATIVE HUMIDITY
0 to 93%, non-condensing
PORTS
  1. (1) ETHERNET
  2. (2) USB
ANNUNCIATOR
Integrated buzzer or remote annunciator, AES Part #7740
PROGRAMMING INTERFACE
Web browser capable device accessible via smartphone, tablet, laptop, or PC
POWER OUTPUT
2 Watts
ENCLOSURE MATERIAL
Metal
ENCLOSURE COLOR
Red

VISUAL INDICATORS

  1. Front Panel LCD (2×20 alphanumeric character back-lit display)
  2. Power and Trouble LEDs (Control Panel and Subscriber, ALM,Trouble, Tx, Rx, WA)
COMPATIBLE RECEIVERS
7705ii MNR, 8705 INCC
(Receivers must be upgraded to latest software versions: MNR: 2.0.8a; NMS: 9.0.5; INCC: 10.00.04)
SMOKE DETECTOR COMPATIBILITY
Compatible with a large number of listed 2-wire models: System Sensor, Hochiki, Potter
NAC POWER
0.5 Amps
NAC OUTPUT
Models including: Gentex, System Sensor, Potter Note: Strobe synchronization available with Gentex and System Sensor
NAC PATTERNS
Temporal & Cadence patterns
Features
  1. 6 Programmable Initiating Device Circuits (IDC), Class B (2-wire)
  2. Built-in Silence / Reset button
  3. 1 Notification Appliance Circuit (NAC)
  4. NAC strobe synchronization for Gentex and System Sensor (Temporal/Cadence patterns)
  5. Intertek (ETL) Listed to UL 864 Standards
Use Case & Application Examples

The 7704-DMS gives you a compact, all-in-one way to monitor small fire system applications on your AES network. It’s ideal where simplicity, code compliance, and reliable communication matter most.

Common Applications:
  1. Small Commercial Buildings – retail shops, small offices, restaurants; monitor sprinkler waterflow/tamper, smoke detectors, pull stations, or heat detectors.
  2. Retrofits & Upgrades – modernize older sprinkler systems with supervised communication without the added cost and complexity of addressable panels.
Perfect For:
  1. Sprinkler system monitoring (flow/tamper) in small commercial buildings
  2. A couple smoke detectors and/or pull stations in offices or restaurants
  3. Simple, reliable monitoring where addressable systems are more complex than needed

AES Technology Comparison

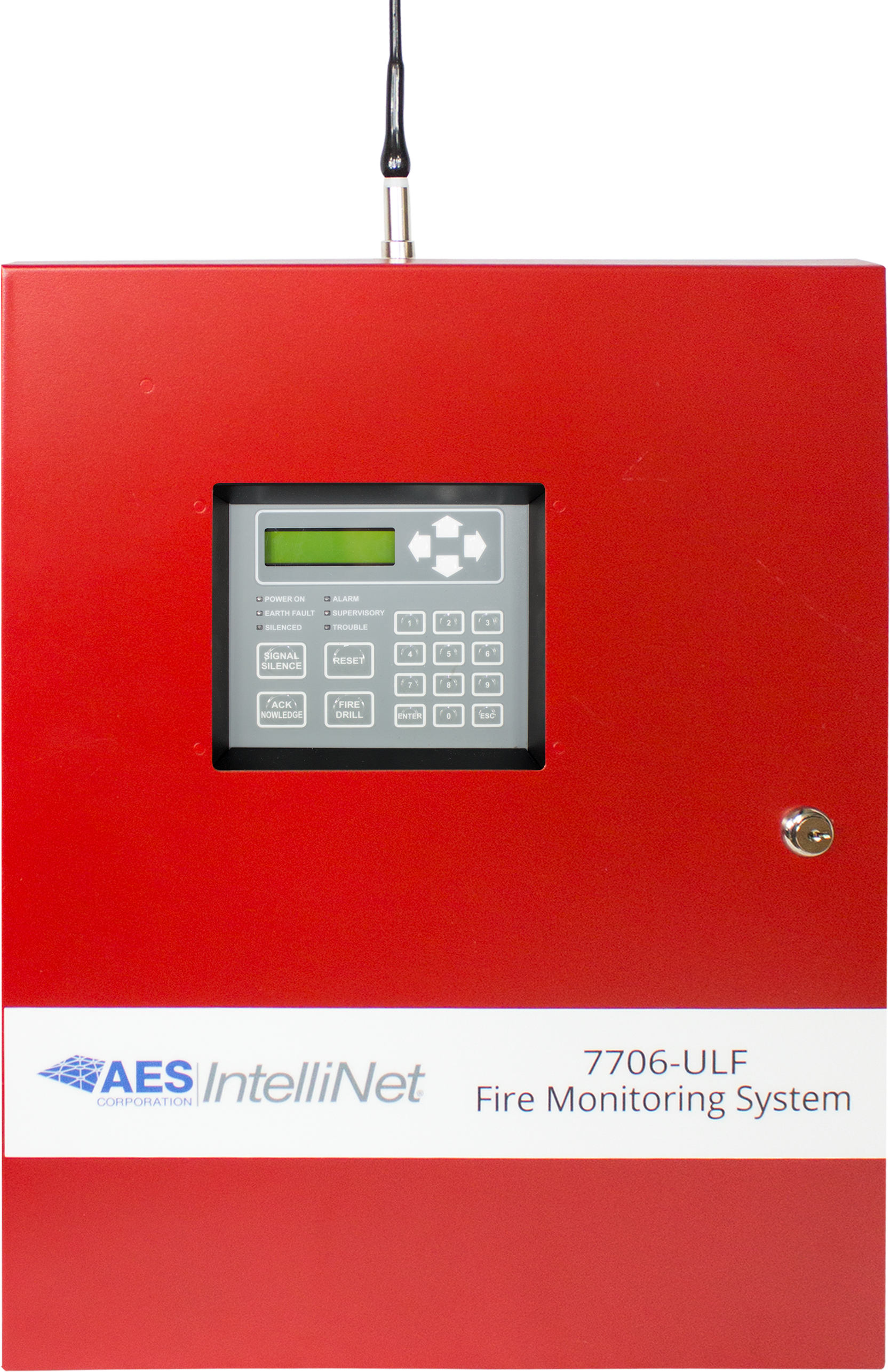

Compare the difference between the new 7704-DMS Dedicated Monitoring System and our 7706-ULF Integrated Fire Monitoring System.

Technology Features 7704-DMS Dedicated Monitoring System 7706-ULF Integrated Fire Monitoring System
Dimensions
13” x 10” x 4.5”
18.5” 14.25” x 4.75”
Weight Without Battery
8.1 lbs
17 lbs
Battery
12 AH
14AH (2)
Antenna
3.3 dB Phantom w/ NMO Mount
2.5 dB Rubber Duck
Number of Zones
6
6
Zone Types
6 Inputs, Type B
1 Input, Type A or B; 5 Inputs, Type B
Visual Indicators
LCD (2 x 20 Alphanumeric character)
LCD (2 x 16 Alphanumeric Character)
Annunciator
Integrated Buzzer or Remote
Remote
Smoke Detector Compatibility
2-wire
2-wire
NAC Power
0.5 Amps
0.5 Amps
Auxillary Power
X
Ports
1 Ethernet; 2 USB
1 Ethernet
Current Consumption
Reference Backup Battery Calculator
Reference Backup Battery Calculator
NAC Patterns
Temporal & Cadence Patterns
Temporal & Cadence Patterns
Programming Interface
Web Browser Capable device accessible via smartphone, tablet, laptop or PC
Laptop via Ethernet using Potter programming software or integrated keypad
Certifications
Meets NFPA 72 Specifications Intertek (ETL) tested to UL 864 standards FDNY/ CALFire
Meets NFPA 72 Specifications UL tested to UL 864 standards CALFire
