3100S-PKG

Solar Powered Subscriber

Grow your network and expand your services with the 3100S-PKG Solar Subscriber. This AES Subscriber comes in a NEMA-rated enclosure for outdoor use and includes an AES-IntelliNet® Transceiver, as well as a 2.0 IntelliNet Board, and a 4-zone relay board for wired sensors that control devices at the installation site. Additional items included are:

  1. 50 Watt Solar Panel
  2. Solar Charging Controller
  3. Phantom Antenna with External Mount

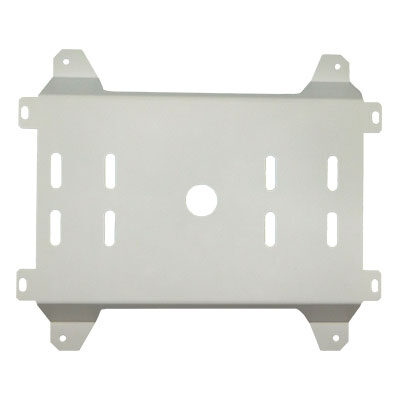

  4. Mounting Brackets for Subscriber

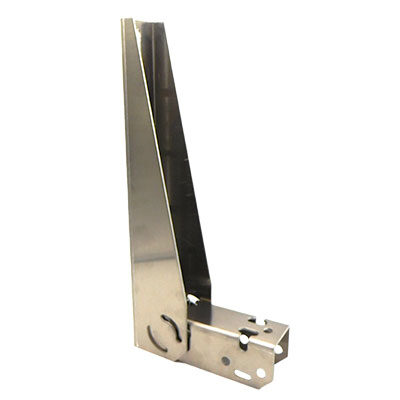

  5. Mounting Brackets for Solar Panel

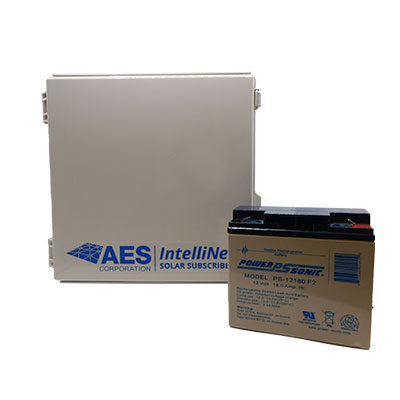

  6. 12 Volt 18 Amp Battery

See below for more examples of how you can use the new Solar Powered Subscriber from AES, or request a sales consultation to discuss solar powered options with your AES Sales Rep.

Technical Specifications

Solar Enclosure Dimensions

14″H X 14″W x 5″D
(355.6mm x 355.6mm x 127mm)

SOLAR Enclosure Weight

  1. 7.05 lbs., Without Battery
  2. 19.2 lbs., With Battery

Solar Enclosure Color

Beige

Solar Enclosure Rating

NEMA-4

Enclosure Mounting Bracket

1.75″-2.5″ OD Pole

Solar Panel

50 Watt Panel
5400 Pa Positive load (Snow load) Equates to 113 lbs per sq ft of snow
2400 Pa Negative load (Wind rating) Equates to 130 mph

Solar Panel Mounting Bracket

2″ OD Pole Mounting Bracket

Solar Panel Dimensions

21.30 in H x 20.08 in W x 1.18 in D
(54.10 cm H x 51.00 cm W x 3.00 cm D)

Solar Panel Installations

Solar Subscriber should ideally be placed no more then 25-30 ft. away from the solar panel

Battery

12 Volt 18 Amp

Will support function of subscriber with relay board powering either a single relay 100% of the time or all four relays for 25% of the time for a period of 72 hours.

Number of Inputs

(4 ea.)
Nominal circuit voltage, Vdc, 2.5 VDC
Max. short circuit current, 1.2 mA

Type of Inputs

Dry contact
Nominal circuit voltage, Vdc, 5 VDC

Number of Outputs

System Trouble (1 ea.)
Switched Output (4 ea.)

Type of Outputs

System Trouble and Switched Output: Relay,
Form C (NO, NC, C), 24V 1 A resistive max. load

RF Operating Frequency

Standard UHF Frequency range 450-470 Mhz, Contact AES for other UHF and VHF frequencies.

Operating Temperature

-4°F to 158°F (-20°C to 70°C)

Storage Temperature

-13°F to 140°F (-25°C to 60°C)

Applications for the 3100S-PKG Solar Powered Subscriber

The 3100S-PKG Solar Powered Subscriber from AES enables network owners to monitor new types of applications on their AES networks, i.e., lift stations, outdoor panic buttons or alarms, and much more! This Subscriber can also be used as a repeater to strengthen an existing network where electrical power is unavailable.

Network Repeater

Use as a repeater in areas where electrical hookup is limited or unavailable, i.e., on the roof of a commercial building without standard power.

Automated External Defibrillators

Monitor the use of medical equipment such as automatic external defibrillators (AEDs) in outdoor locations such as golf courses or sporting venues.

Panic Buttons & Alarms

Monitor panic buttons on college campuses, outdoor parking lots, ect., and warning alarms for outdoor applications such as at beaches or on ski slopes.

Outdoor Lift Stations

Monitor levels at outdoor lift stations or in common flood zones.
