PRODUCTS / ACCESSORIES

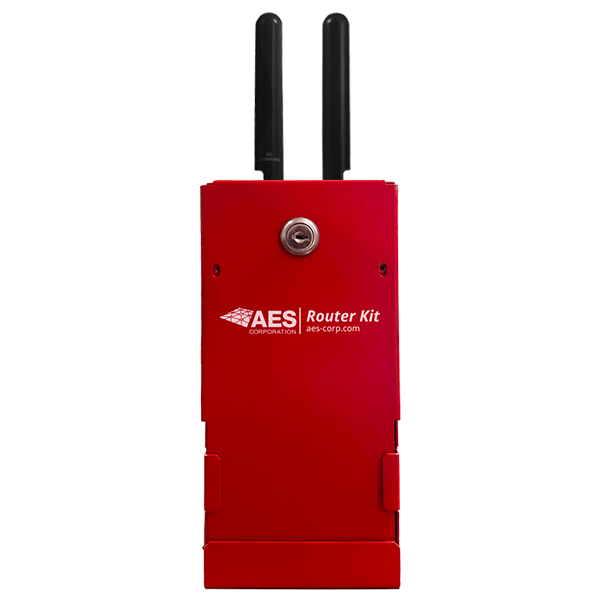

7177-RT Router Kit

S450 Ericsson® Cradlepoint® router inside rugged enclosure
A fast, turnkey solution that makes it possible to install the 7177H Hybrid Subscriber almost anywhere!

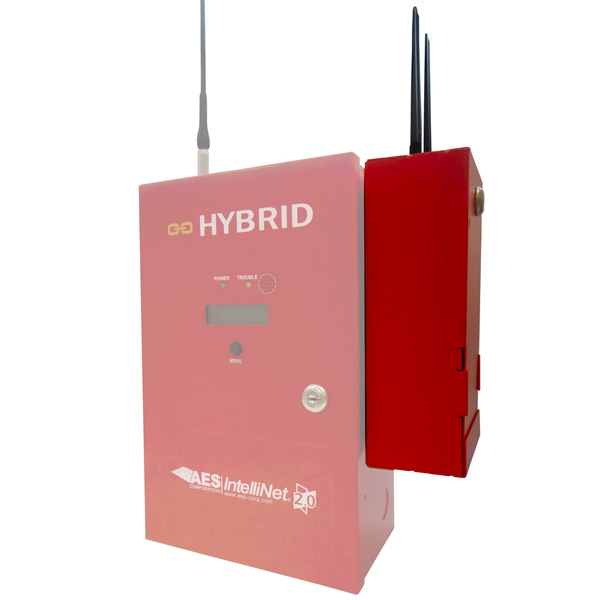

The new 7177-RT Router Kit comes with a S450 Ericsson Cradlepoint router inside an easily mountable enclosure made to attach to any AES 2.0 IntelliNet® 7177H Hybrid Subscriber. The Hybrid can also power the router saving valuable time and money on installations.

To prevent downtime and lost signals and ensure the Hybrid is always connected, this kit comes with a multi-carrier SIM card (Verizon®, AT&T®, T-Mobile®) that automatically switches carriers to maintain uninterrupted service when needed.

Price: $450.00

Need data? We've got you covered!
Learn More About Data Coverage for this Product Below
Place an Order

With the new 7177-RT Router Kit, you can transmit AES signals to your central monitoring station via cellular connection. This compact, easy-to-mount system gives you greater control over your AES network, allowing you to manage both connectivity and data costs more efficiently. The kit also powers directly from your Hybrid Subscriber, eliminating the need for external hookups.

Features
  1. GPIO cable to power router directly from Hybrid
  2. Magnets on enclosure for quick installation
  3. 2-LTE Antennas
  4. Multi-Carrier SIM card (Verizon, AT&T, T-Mobile)
  5. S450 Cradlepoint router with 3-year NetcloudTM Manager
Benefits
  1. Cell usage provides faster connectivity and eliminates the need for a cable provider
  2. Kit makes it possible to install a 7177H Hybrid Subscriber almost anywhere using the Cradlepoint router

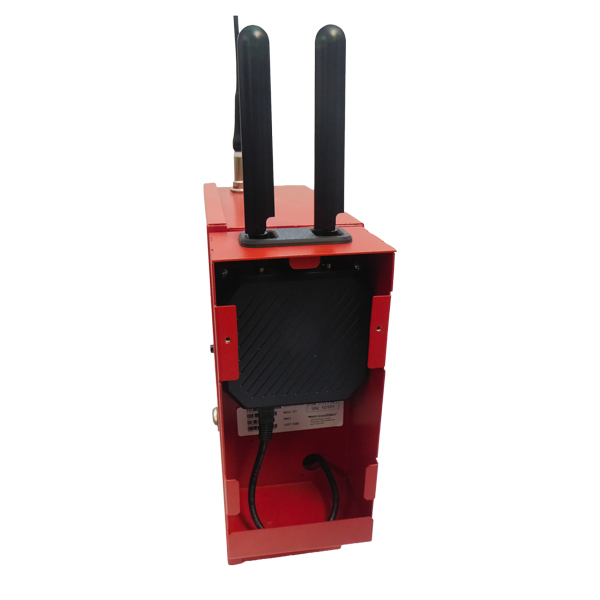

  3. Attaches to the 7177H Hybrid Subscriber easily with magnets
  4. Router can be powered by Hybrid, making for an easy and fast installation (14 amp hour battery needed when also using IntelliPro). See AES Battery Calculator

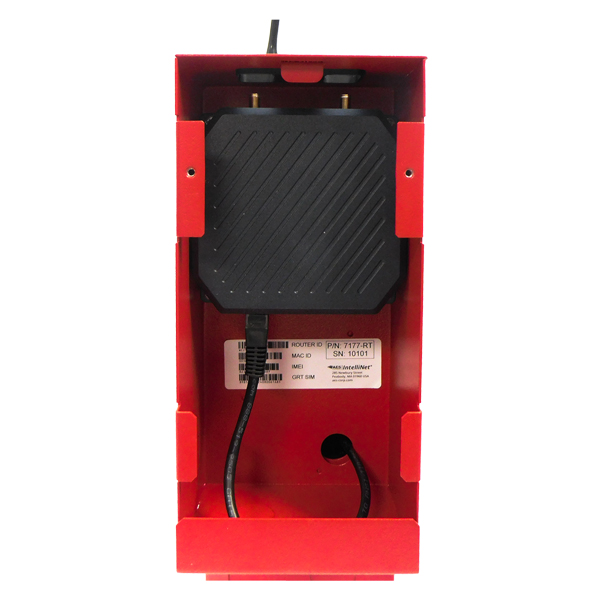

  5. Enclosure cover slides up for easy access to router and includes a lock to keep router protected
  6. Multi-Carrier SIM ensures the 7177H Hybrid Subscriber will always have a connection
  7. Easy management of your devices and troubleshooting with NetCloud Manager
Technical Specifications
ENCLOSURE DIMENSIONS

9” H x 4.35” W x 2.90” D
(23cm H x 11cm W x 7.36cm D)

ENCLOSURE WEIGHT

Approx 3 lbs (1.36 kg) with Ericsson Cradlepoint router)

ENCLOSURE MATERIAL

Metal

ENCLOSURE COLOR

Red

ROUTER DIMENSIONS

3.9” H x 4.1” W x 1.2” D

ROUTER WEIGHT

7.8 oz (221 g)

ANTENNAS

(2) – LTE Antennas

POWER OPTIONS
  1. 12-VDC, 2×2 wall plug
  2. 2×2 GPIO power cable (Hybrid needs 14 amp hour battery if also using IntelliPro – See AES Battery Calculator)
ROUTER OPERATING TEMPERATURE

-4°F to 140°F (-20°C to 60°C)

ROUTER Storage TEMPERATURE

-4°F to 158°F (-20°C to 70°C)

ROUTER RELATIVE HUMIDITY

0 to 95% operating

SIM CARD

Multi-Carrier SIM card (Verizon, AT&T, T-Mobile)

7177H Hybrid Subscriber

Fire Subscriber with IP Link Functionality

View Details

8214

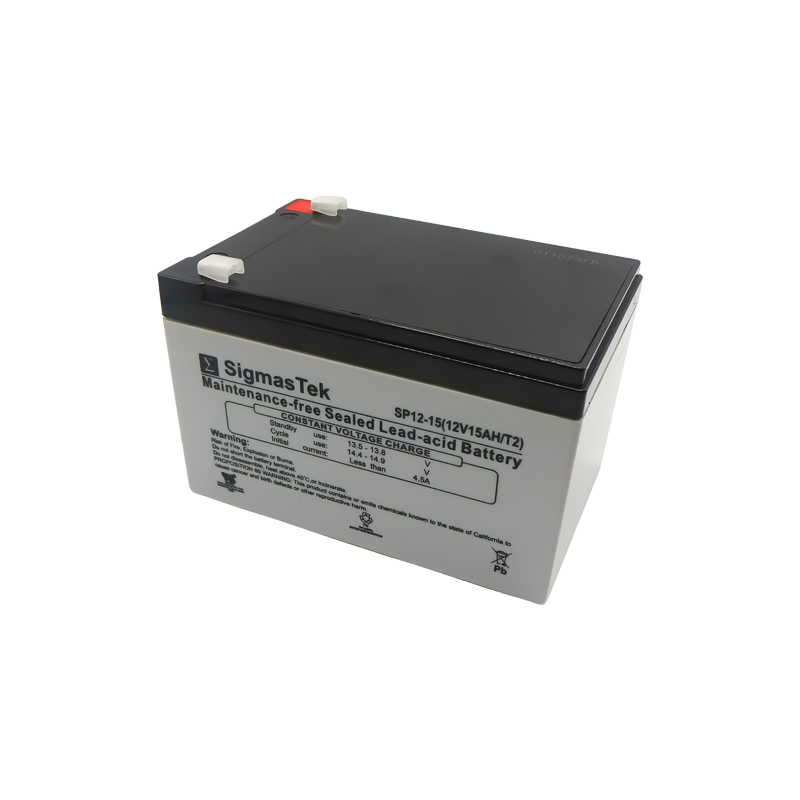

12 Volt 14 Amp Hour Gel Cell Battery

View Details

If you are already using NetCloud Manager for existing devices, please reach out to AES Technical Support to have your router license transferred into your NetCloud account. You will need to provide the Router ID (Serial #) and your NetCloud account #.

Need data? No Problem!

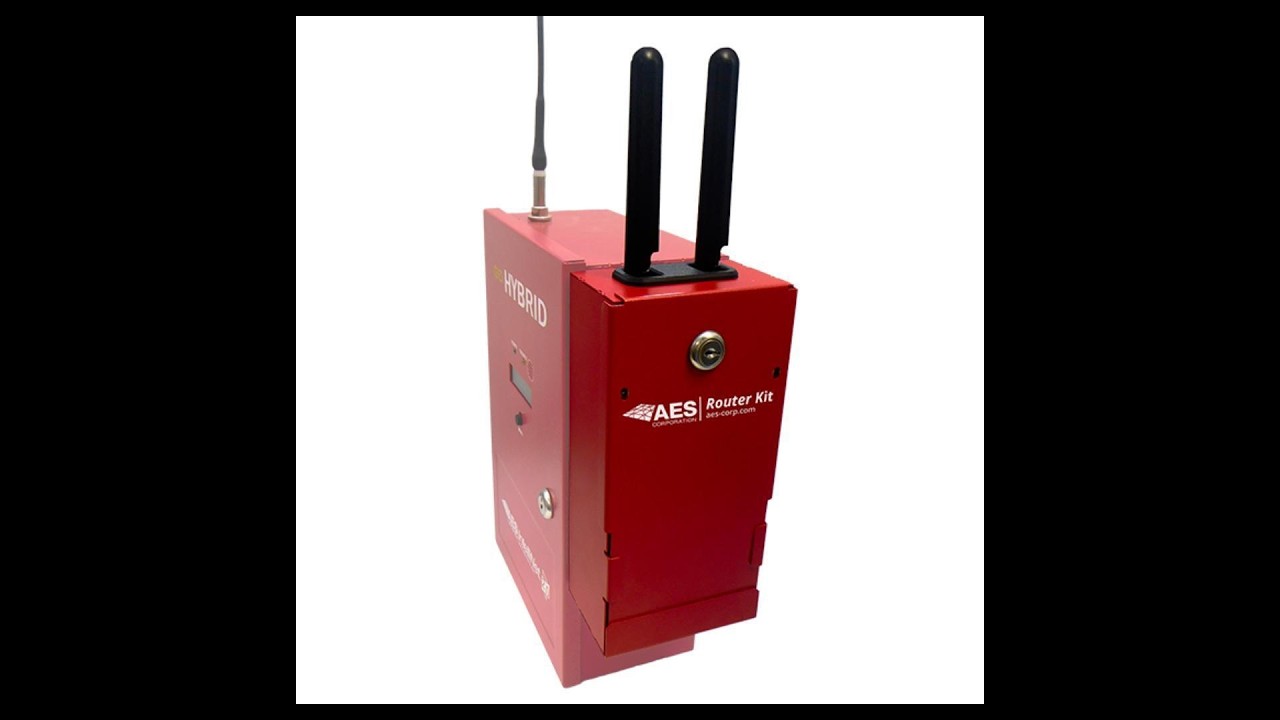

AES has partnered with Granite Telecommunications to provide a built-in data plan with the 7177-RT Router Kit. Once purchased, please fill out Granite’s Commercial Account Form and Letter of Agreement (this will be emailed to you when product ships and can also be found in product packaging when received) and email to AESDealer@GraniteNET.com to activate the pre-installed SIM card. From there, download and follow the AES Dealer Activation Guide to activate your SIM card.

SIM card cannot be activated until the signed CAF/ LOA form is submitted. This form only needs to be completed once per dealer.

Dealer Activation Guide
