Network Management System

The 7275 Network Management System interfaces with the 7705ii MultiNet receiver to provide a complete end-to-end mesh radio network monitoring and management platform. Unlike other communication technologies, the NMS tool was developed to give users full visibility of a network and its performance via real time dashboards, notification alerts and map visualizations.

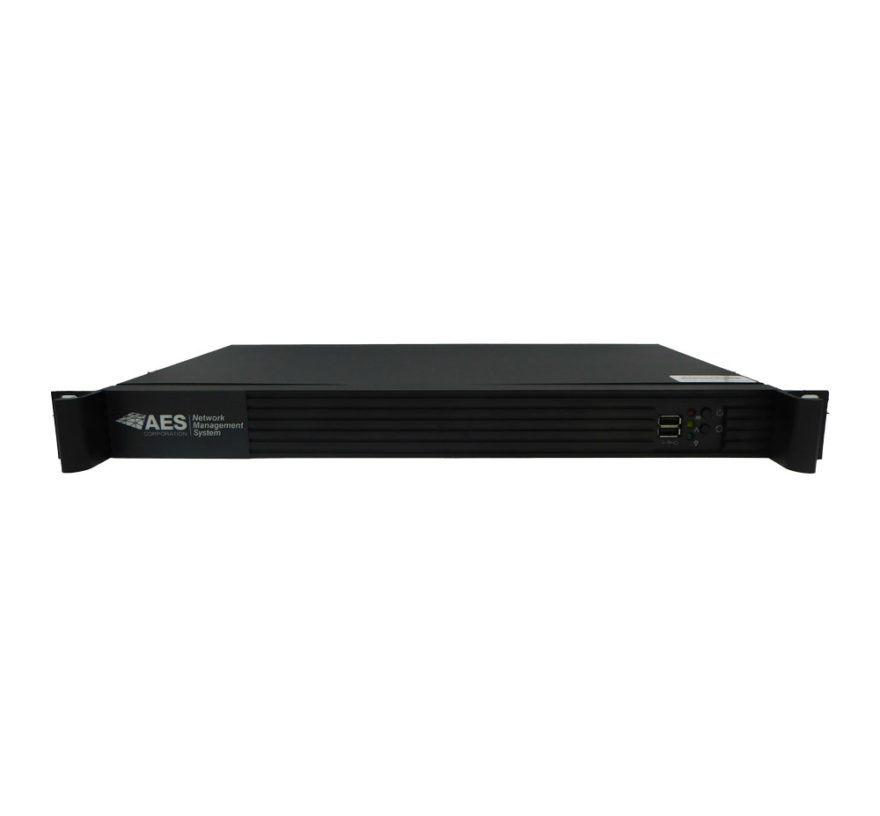

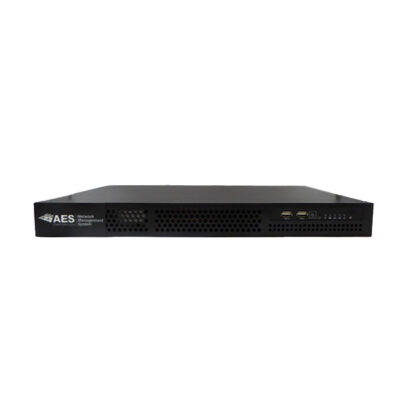

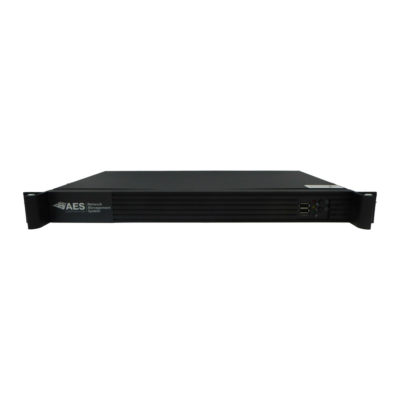

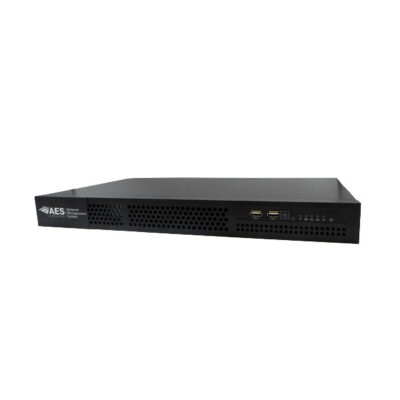

Dimensions Standard 1U rack enclosure 17"W x 2.75"H x 10.38"D

Weight 8 lbs.

Power Input 120 VAC 60 Hz

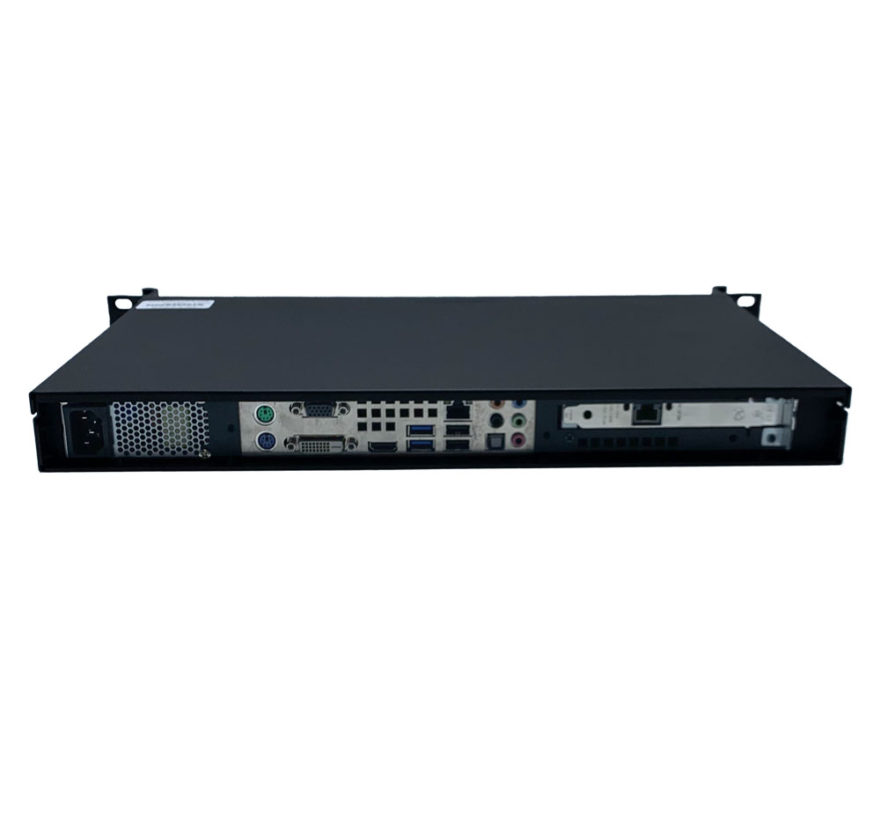

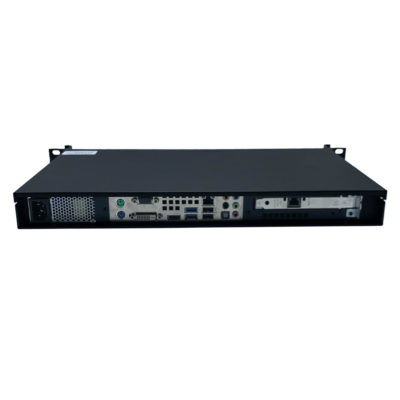

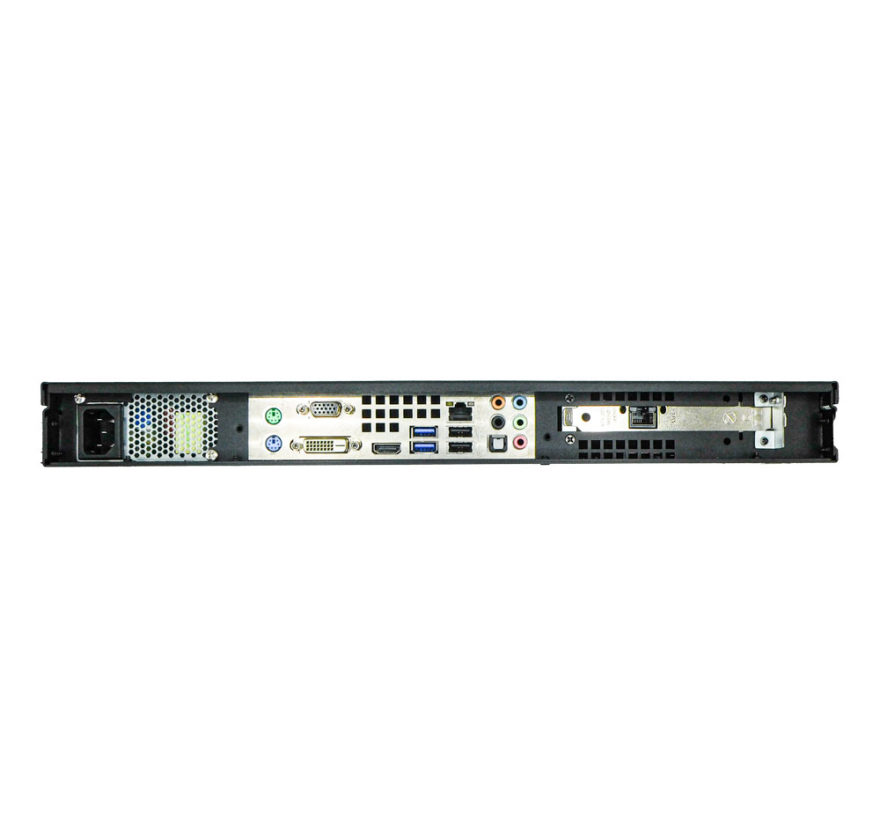

Interface Connections PS2 (2)
VGA Output
RJ45 for Ethernet Connection (2)
USB Ports (4)

Battery Backup N/A

Operating Temperature 55° to 95° +/-3° F

Encryption N/A

Operating System Linux

Operating Voltage 120 VAC, 60 Hz. +/- 10%

Enclosure Rack mountable aluminum housing

Operating Current N/A

Power Consumption N/A

  • Real time reporting of alarm panel and subscriber events

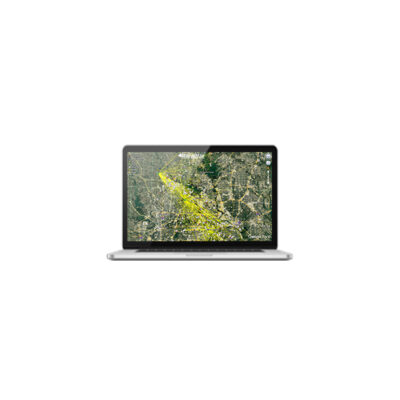

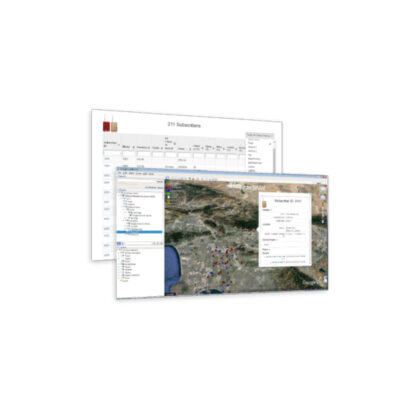

  • Interactive Visualization of the network using Google Earth™
  • User configurable notification alerts via SMS and email to key personal of network events
  • Network score for the Dealer dashboard
  • Subscriber and IP Link service logs
  • Visualization of subscriber routes for RF signals
  • Ability to enter Non-AES equipment for visualization and network expansion

Software Update

7275 Network Management System

Release Date: October 1, 2020

*Please contact AES Support for your NMS Software release. Must be enrolled in the AES Maintenance Program to receive update.

Download Customer Release Notes
