Big Summer Savings

Offer Ends July 31st
Save Big on the 3100S-PKG Solar Powered Subscriber

For a limited time AES Coporation is offering dealers $274 off the list price of the 3100S-PKG Solar Powered Subscriber. See below for more details:

  1. Order up to 5 Solar Powered Subscribers at discounted price of $950 each ($274 off list price!!!)
  2. Potential savings of over $1,300!
  3. Discount does not apply to blanket orders.
  4. Promotional pricing will only be applicable to new orders placed between now and July 31, 2025.
  5. If an order, or multiple orders, exceeds the limit of five 3100S-PKG Solar Powered Subscriber units within the stated time period, each additional unit will be charged at list or standard blanket order price.
Place Your Order Online
Place Your Order via Email

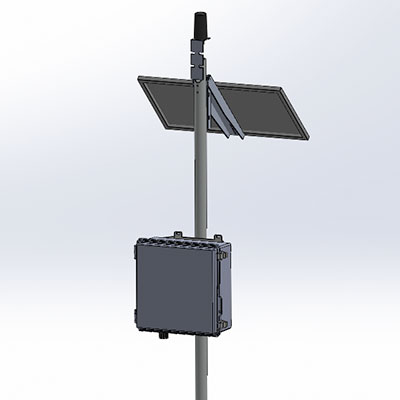

About the 3100S-PKG Solar Powered Subscriber

Expand and Strengthen Your AES Network

With the 3100S-PKG Solar Powered Subscriber, AES dealers can enjoy the flexibility of installing anywhere, regardless of power limitations. In addition to network expansion in areas that would otherwise be unreachable, the 3100S-PKG Solar Powered Subscriber is also a great network repeater. With the 3100S-PKG, the scalability of your network is limitless.

Visit the Product Page
Solar Subscriber Customer Success Story

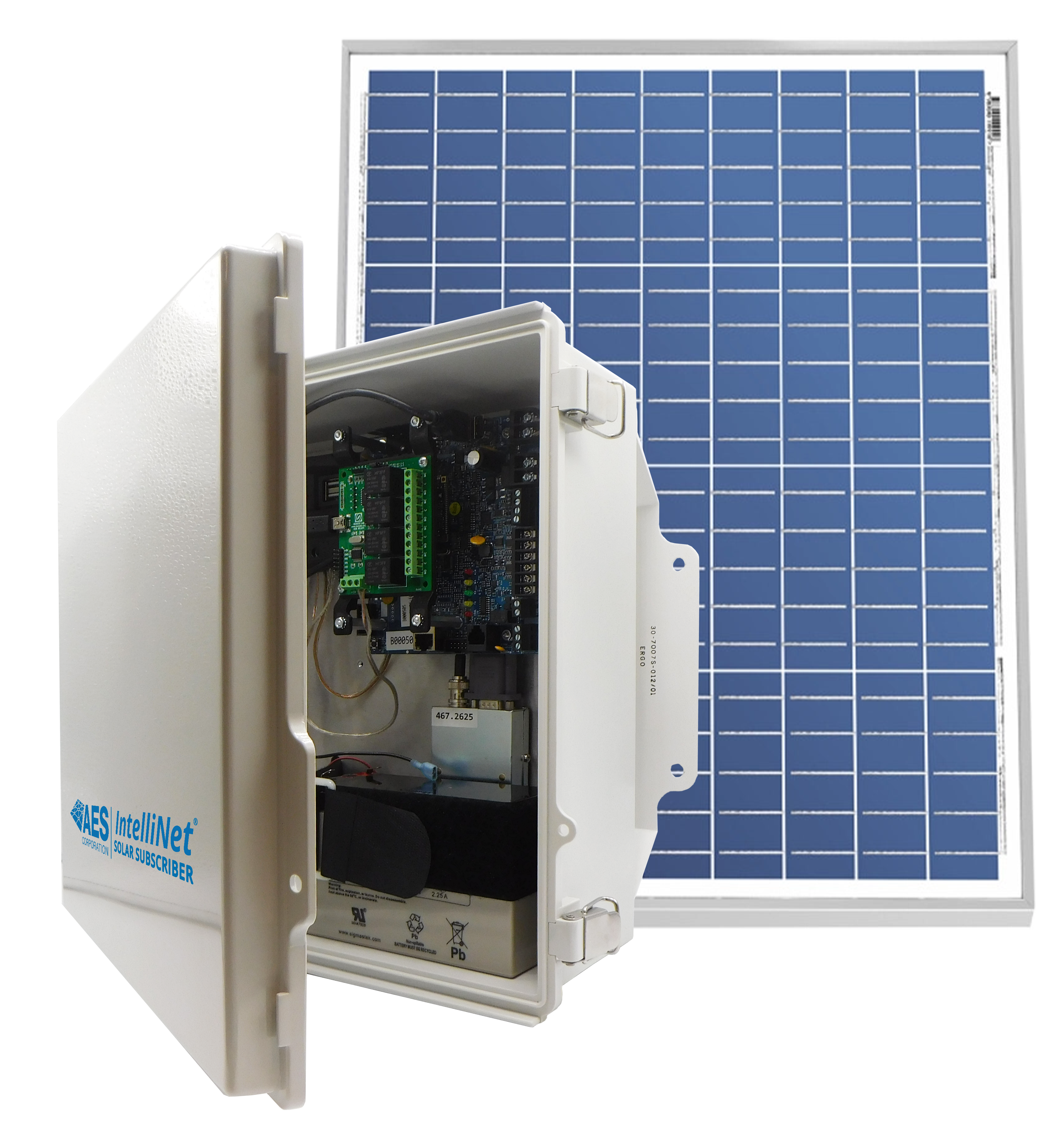

3100S-PKG Inclusions
  1. NEMA-rated Enclosure (for outdoor use)
  2. AES-IntelliNet Transceiver
  3. 2.0 IntelliNet Board
  4. 4-Zone Relay for Wired Sensors
  5. 50 Watt Solar Panel
  6. Solar Charging Controller
  7. Phantom Antenna with External Mount
  8. Mounting Brackets for Subscriber
  9. Mounting Brackets for Solar Panel
  10. 12 Volt 18 Amp Battery
Technical Specifications

Solar Enclosure Dimensions

14″H X 14″W x 5″D
(355.6mm x 355.6mm x 127mm)

SOLAR Enclosure Weight

  1. 7.05 lbs., Without Battery
  2. 19.2 lbs., With Battery

Solar Enclosure Color

Beige

Solar Enclosure Rating

NEMA-4

Enclosure Mounting Bracket

1.75″-2.5″ OD Pole

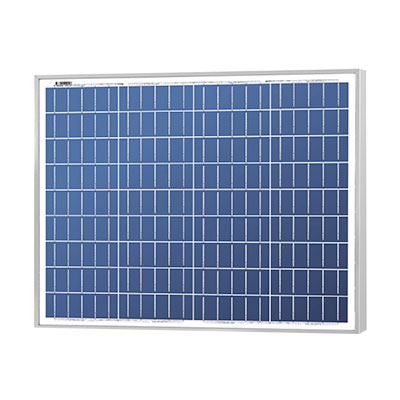

Solar Panel

50 Watt Panel
5400 Pa Positive load (Snow load) Equates to 113 lbs per sq ft of snow
2400 Pa Negative load (Wind rating) Equates to 130 mph

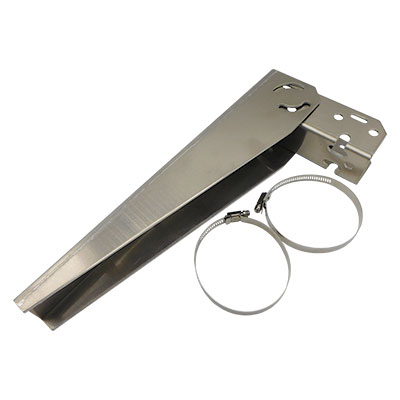

Solar Panel Mounting Bracket

2″ OD Pole Mounting Bracket

Solar Panel Dimensions

21.30 in H x 20.08 in W x 1.18 in D
(54.10 cm H x 51.00 cm W x 3.00 cm D)

Solar Panel Installations

Solar Subscriber should ideally be placed no more then 25-30 ft. away from the solar panel

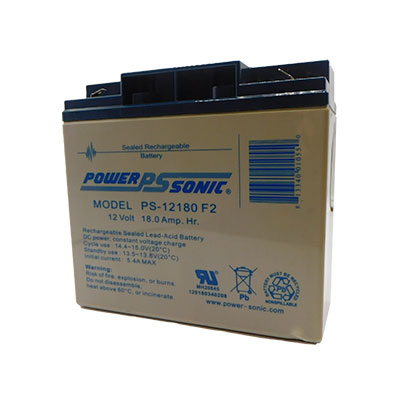

Battery

12 Volt 18 Amp

Will support function of subscriber with relay board powering either a single relay 100% of the time or all four relays for 25% of the time for a period of 72 hours.

Number of Inputs

(4 ea.)
Nominal circuit voltage, Vdc, 2.5 VDC
Max. short circuit current, 1.2 mA

Type of Inputs

Dry contact
Nominal circuit voltage, Vdc, 5 VDC

Number of Outputs

System Trouble (1 ea.)
Switched Output (4 ea.)

Type of Outputs

System Trouble and Switched Output: Relay,
Form C (NO, NC, C), 24V 1 A resistive max. load

RF Operating Frequency

Standard UHF Frequency range 450-470 Mhz, Contact AES for other UHF and VHF frequencies.

Operating Temperature

-4°F to 158°F (-20°C to 70°C)

Storage Temperature

-13°F to 140°F (-25°C to 60°C)

Application Examples for the Solar Powered Subscriber

Select the + icon for more details.

Network Repeater

Use as a repeater in areas where electrical hookup is limited or unavailable, i.e., on the roof of a commercial building without standard power.

Panic Buttons & Alarms

Monitor panic buttons on college campuses, outdoor parking lots, ect., and warning alarms for outdoor applications such as at beaches or on ski slopes.

Outdoor Lift Stations

Monitor levels at outdoor lift stations or in common flood zones.
